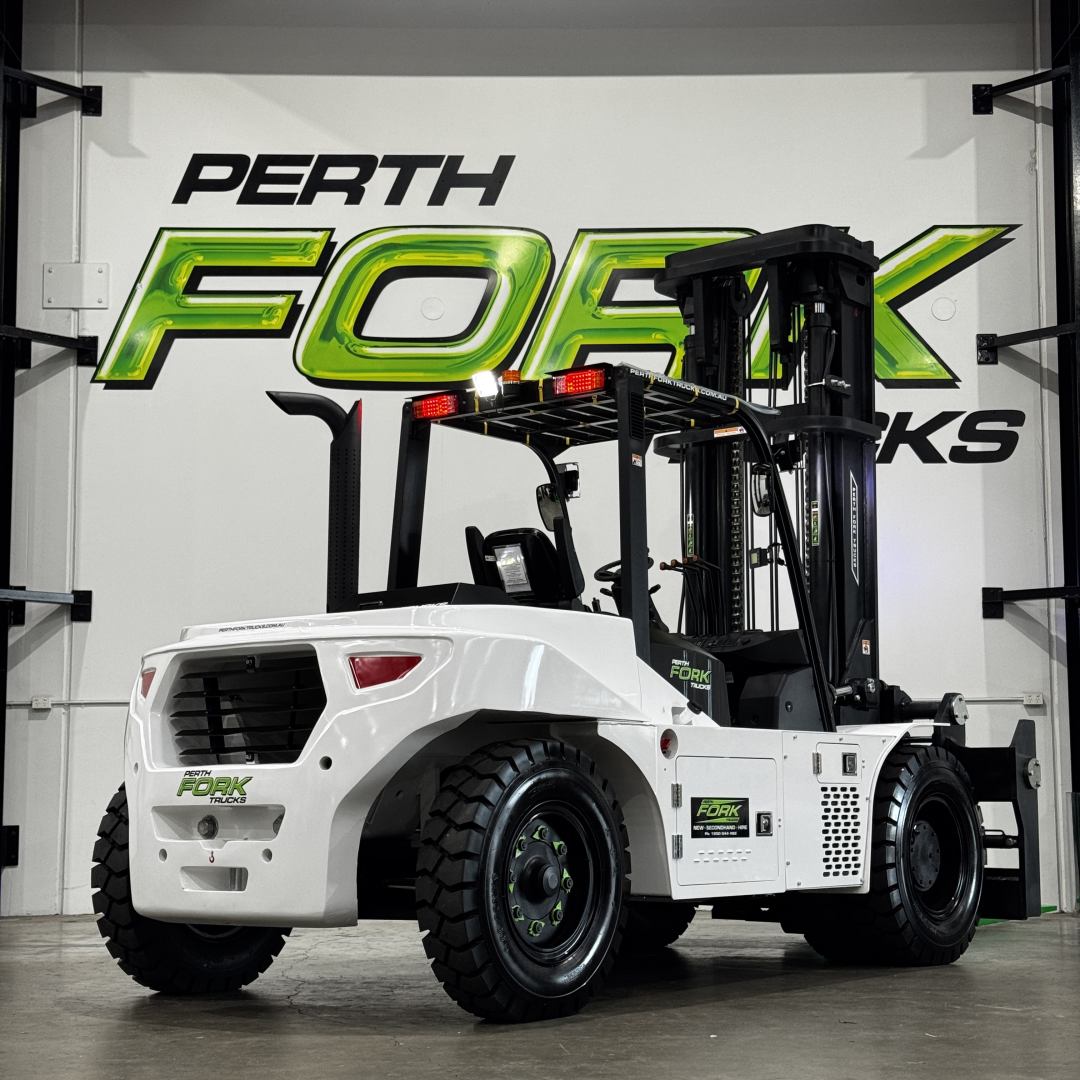

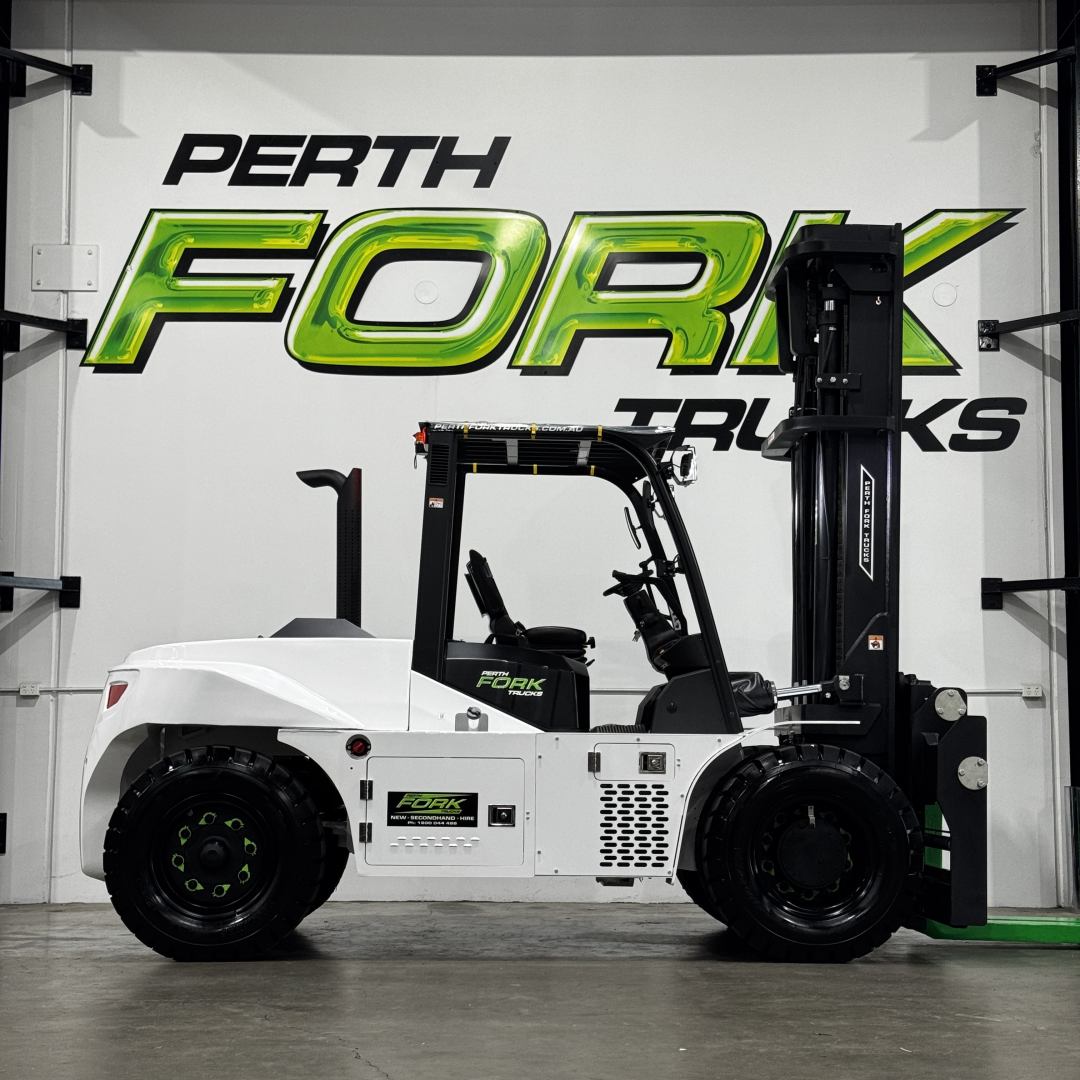

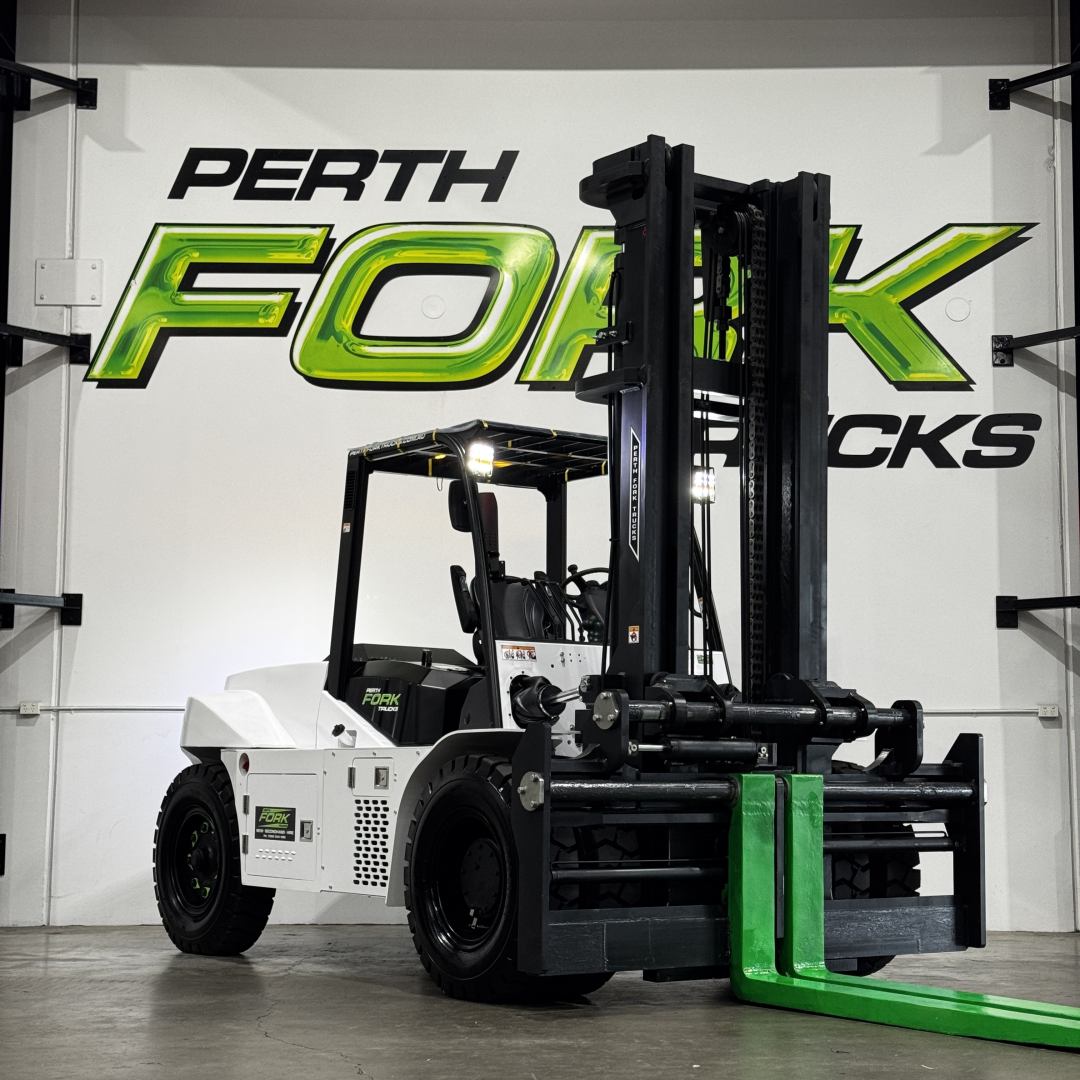

Yale 10T Forklift

Capacity

• Nominal Capacity - 10,000kg

• 9010kg @ 600mm LC to full lift height



  Mast

• 2-Stage Clear View Mast

• 4500mm Lift Height

• 3650mm Collapsed Height

• Tilt 6° Forward / 12° Back

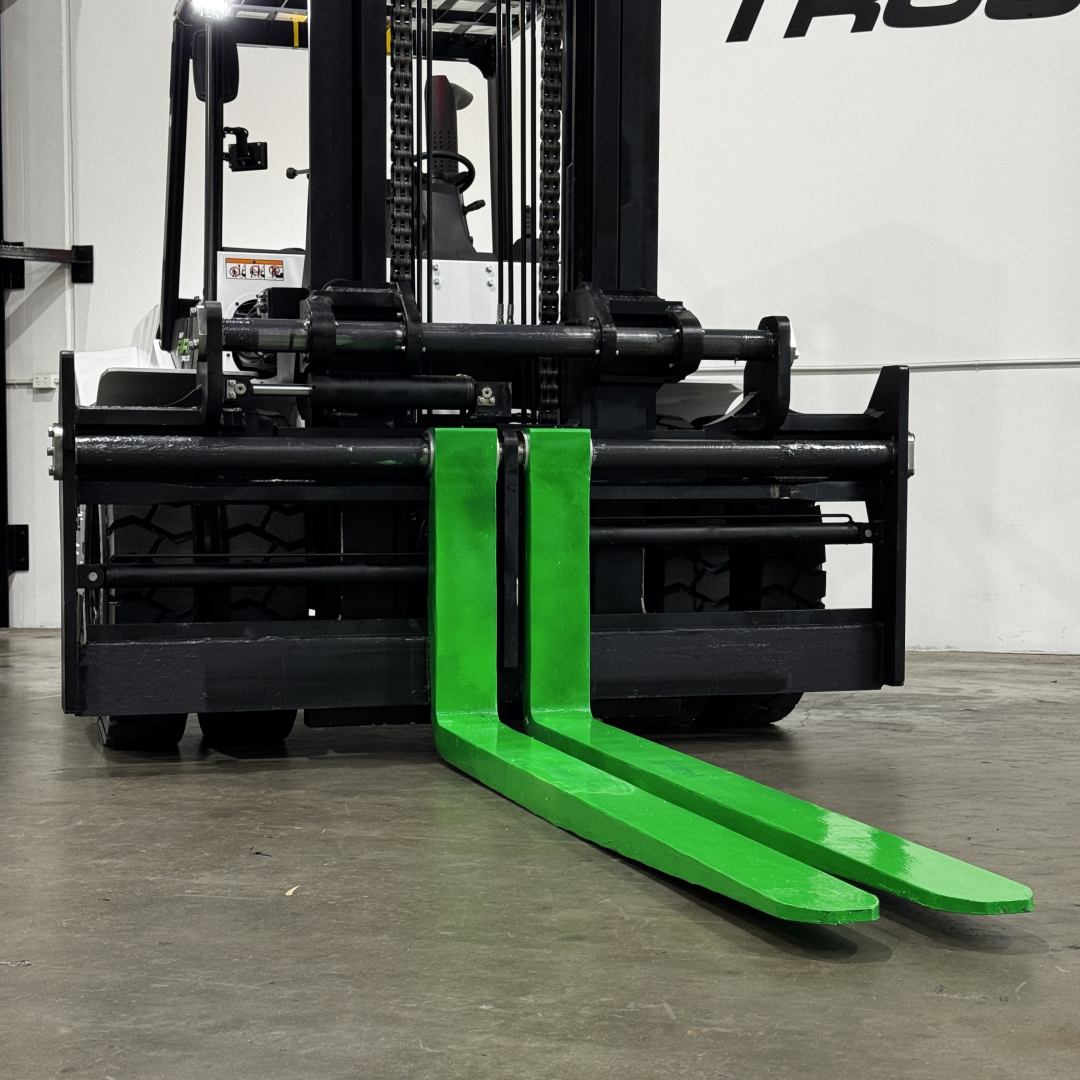

  Attachment

• Wide Carriage

• Hydraulic Fork Positioners

• Side-shift

  -2440mm Long x 90mm Thick x 175mm Wide - Pin Type Forks with Standard Taper

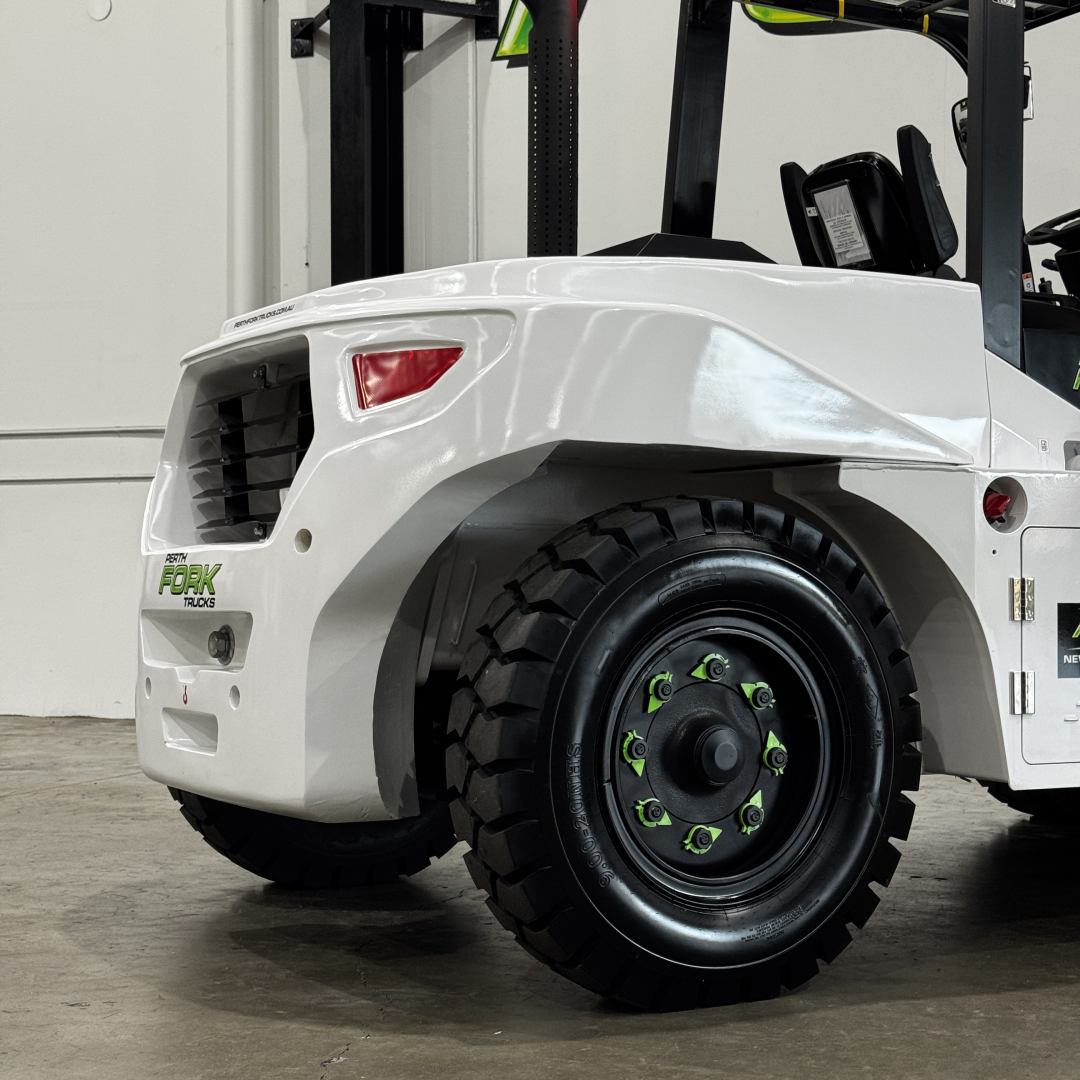

  Wheels

• Dual Pneumatic Drive Tyres

• Pneumatic Steer Tyres



  Engine

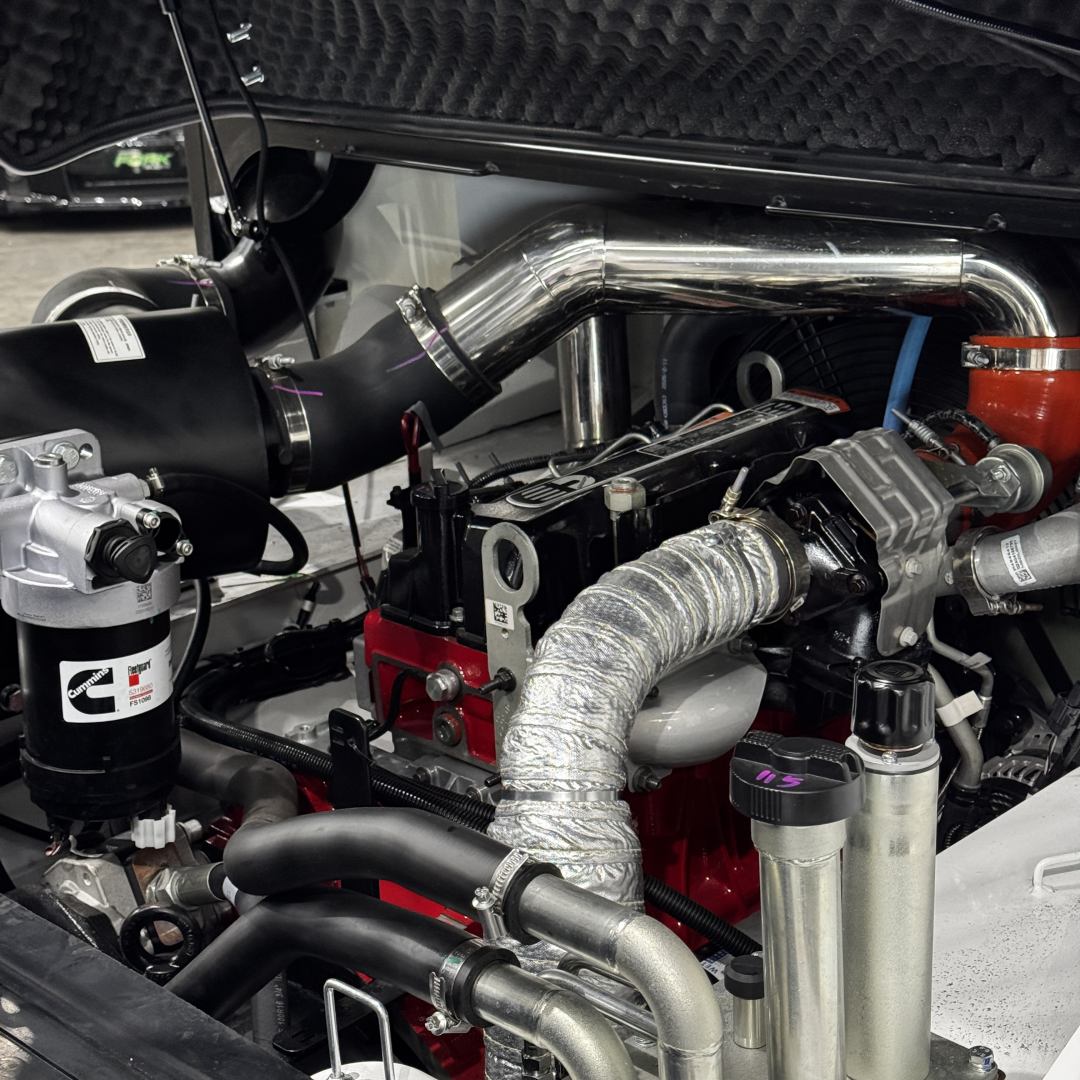

• Cummins QSF 3.8L Tier 3 Diesel Engine



  Drivetrain

• Powershift 2 speed transmission

• Drum Brake Front End



  Features

• Audible Alarm - Reverse

• Direction Activated - Self-Adjusting 82-102 dB(A)

• Amber Strobe Light -

• Ignition and Switch Activated

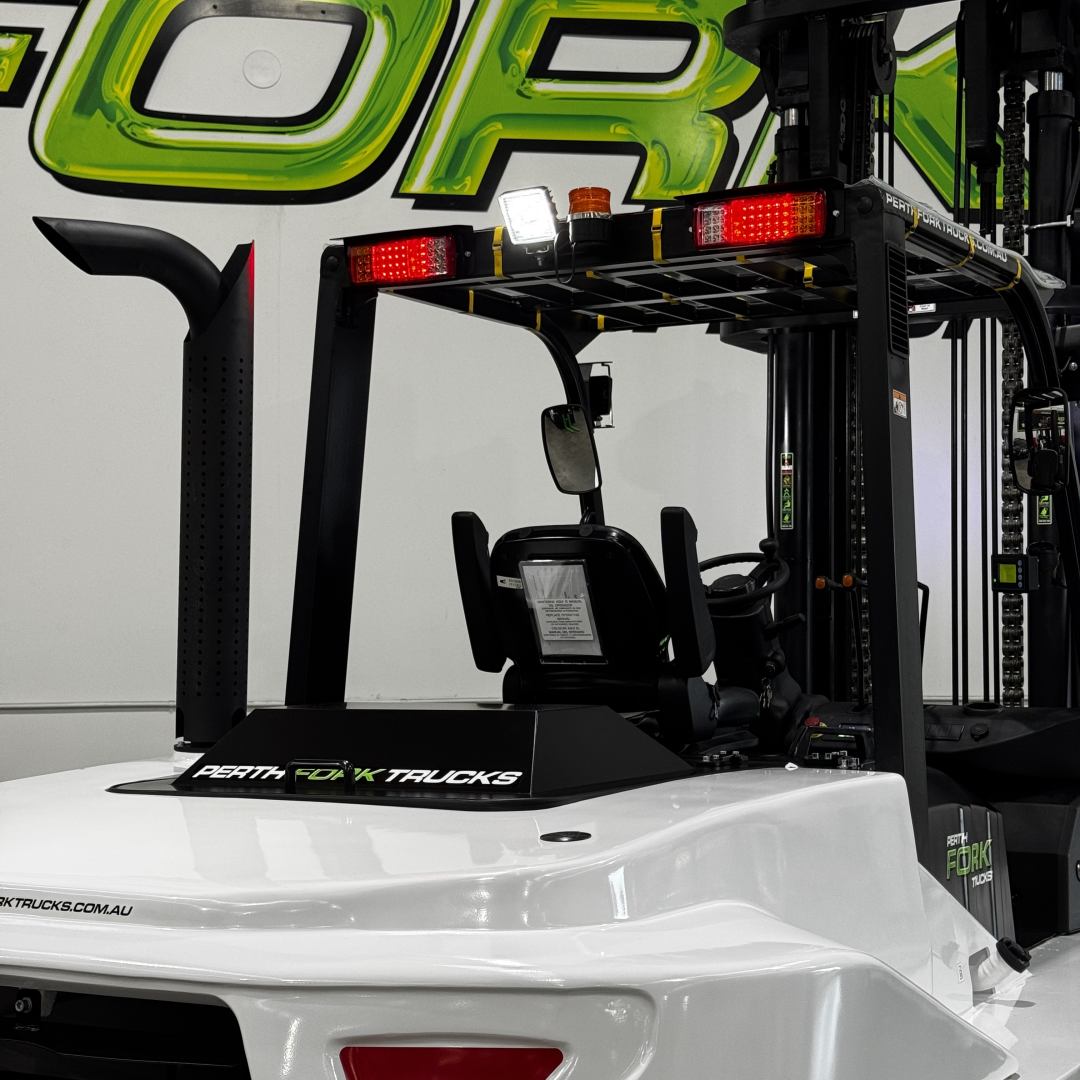

• Two Front / One Rear LED

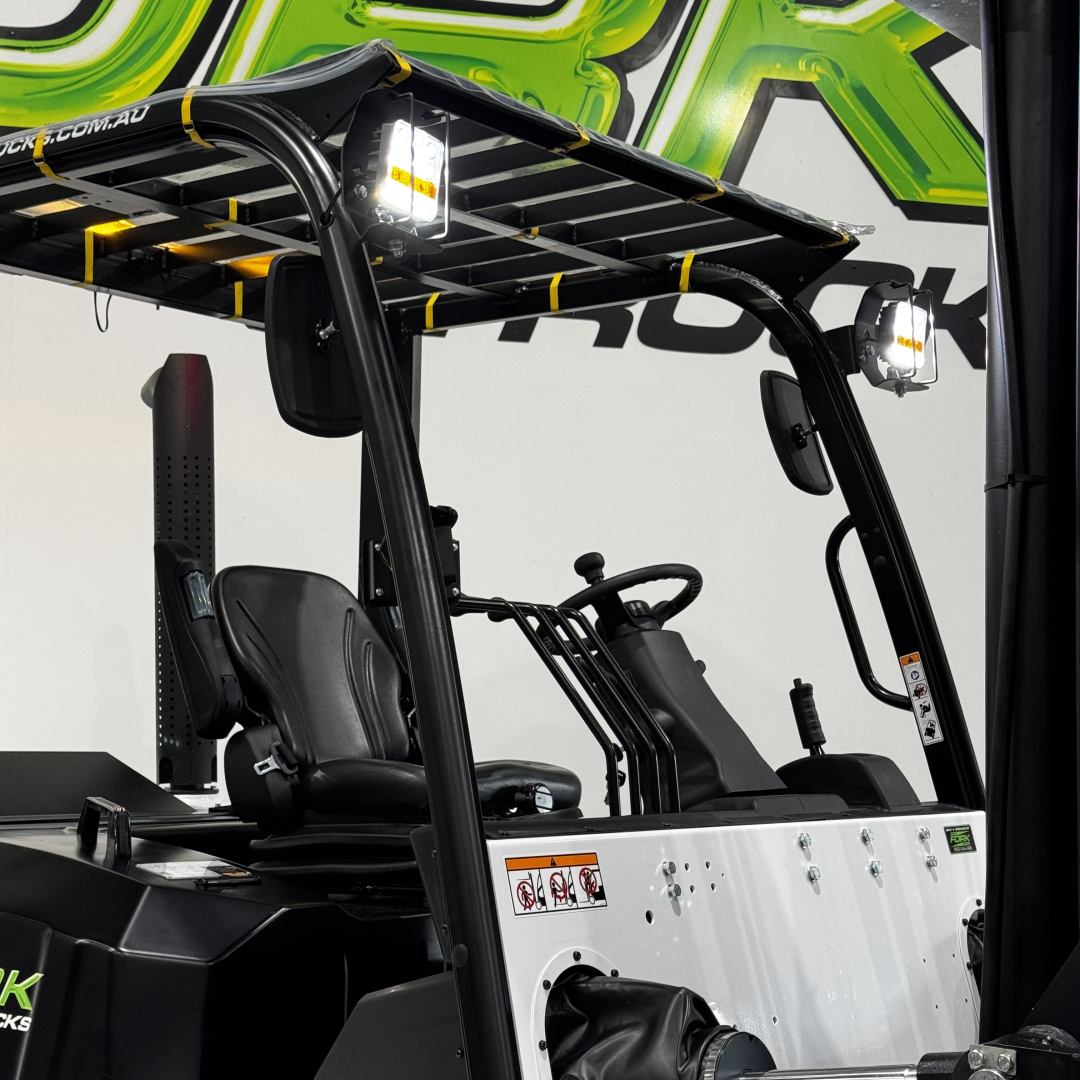

• Work Light Package with Brake / Tail / Back-Up Lights with Turn Signals

• Seat Belt with Sequential

  Interlock (Australia)

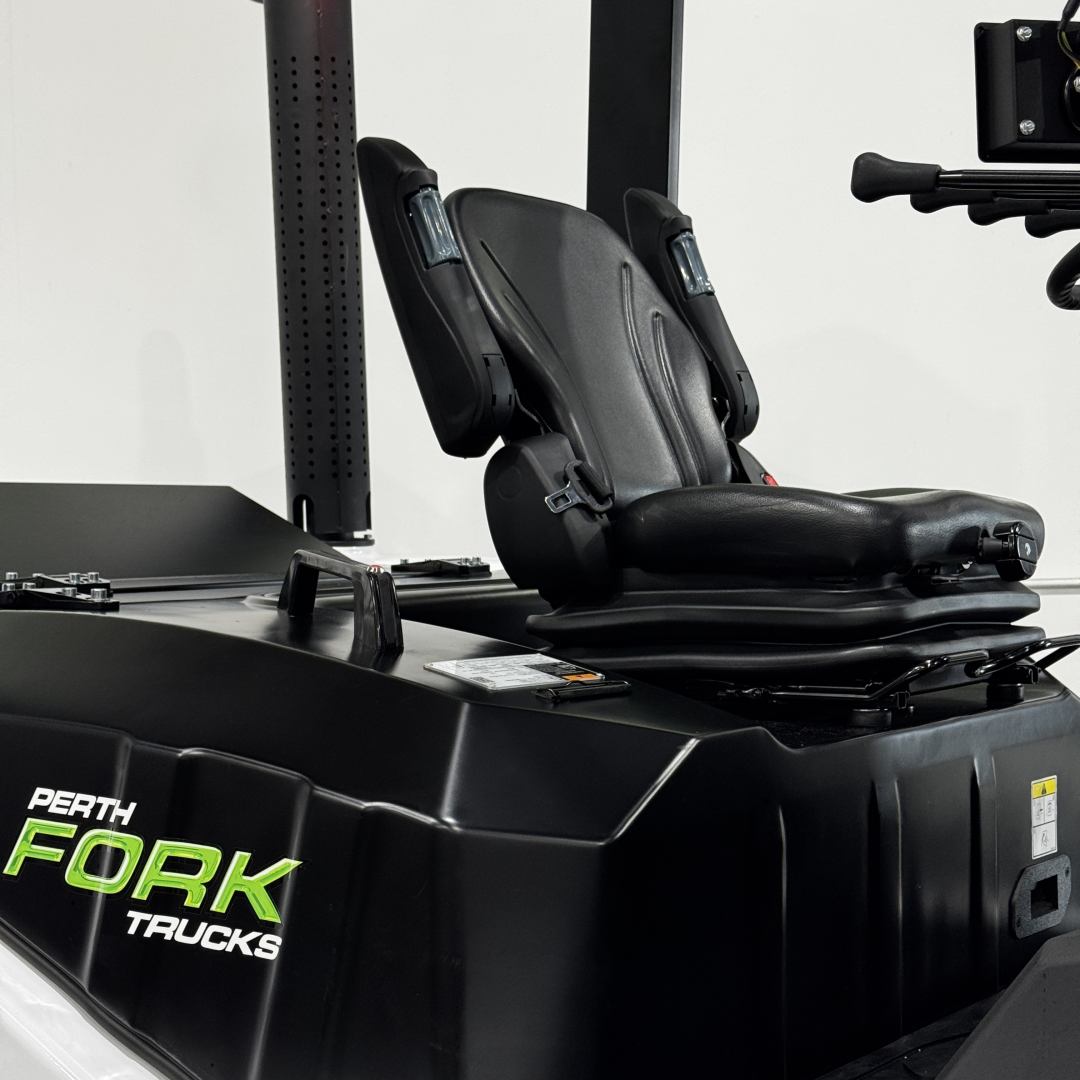

• Full Suspension Vinyl with Armrest and Seat Switch

  (Australia)

• Polycarbonate Rain Top for Overhead Guard

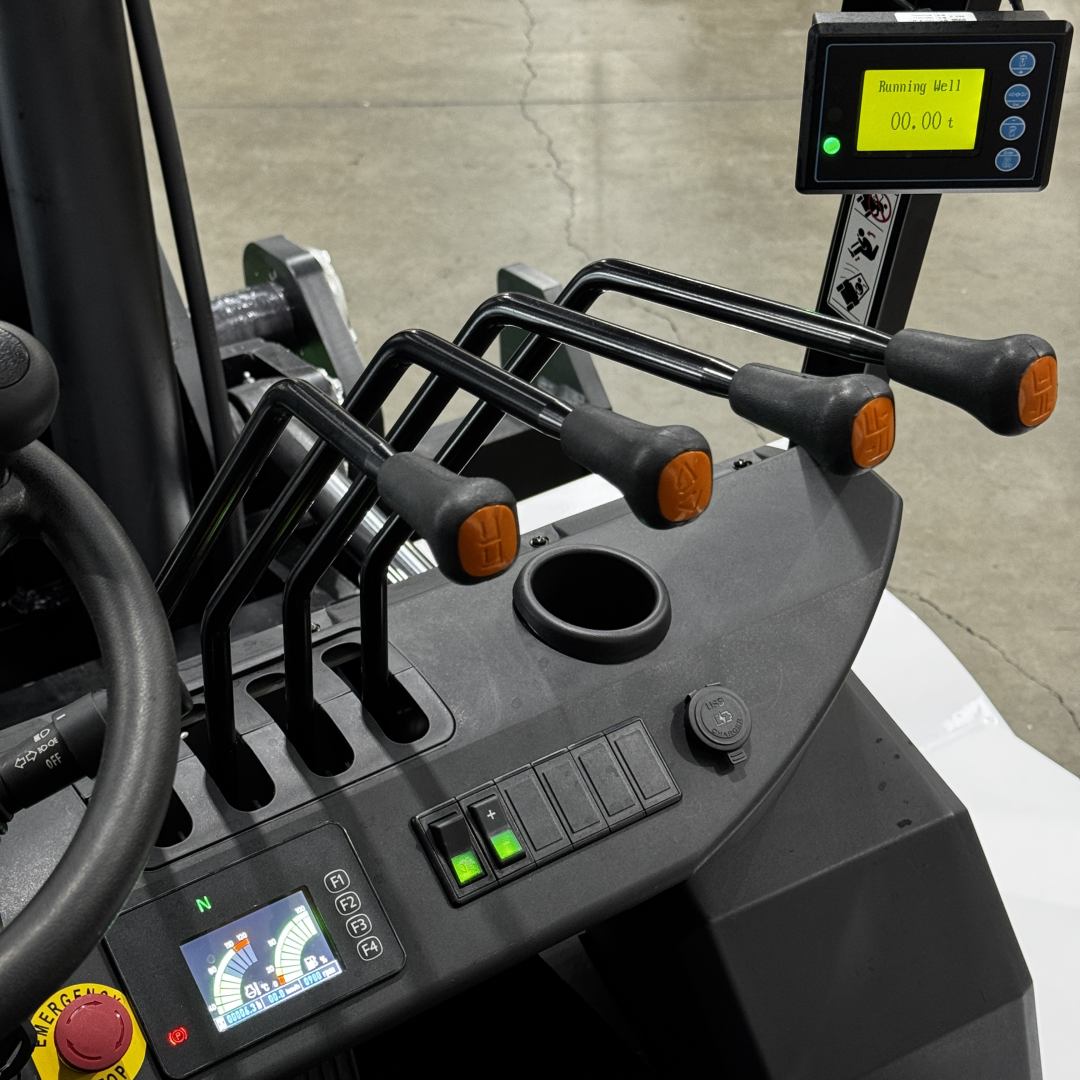

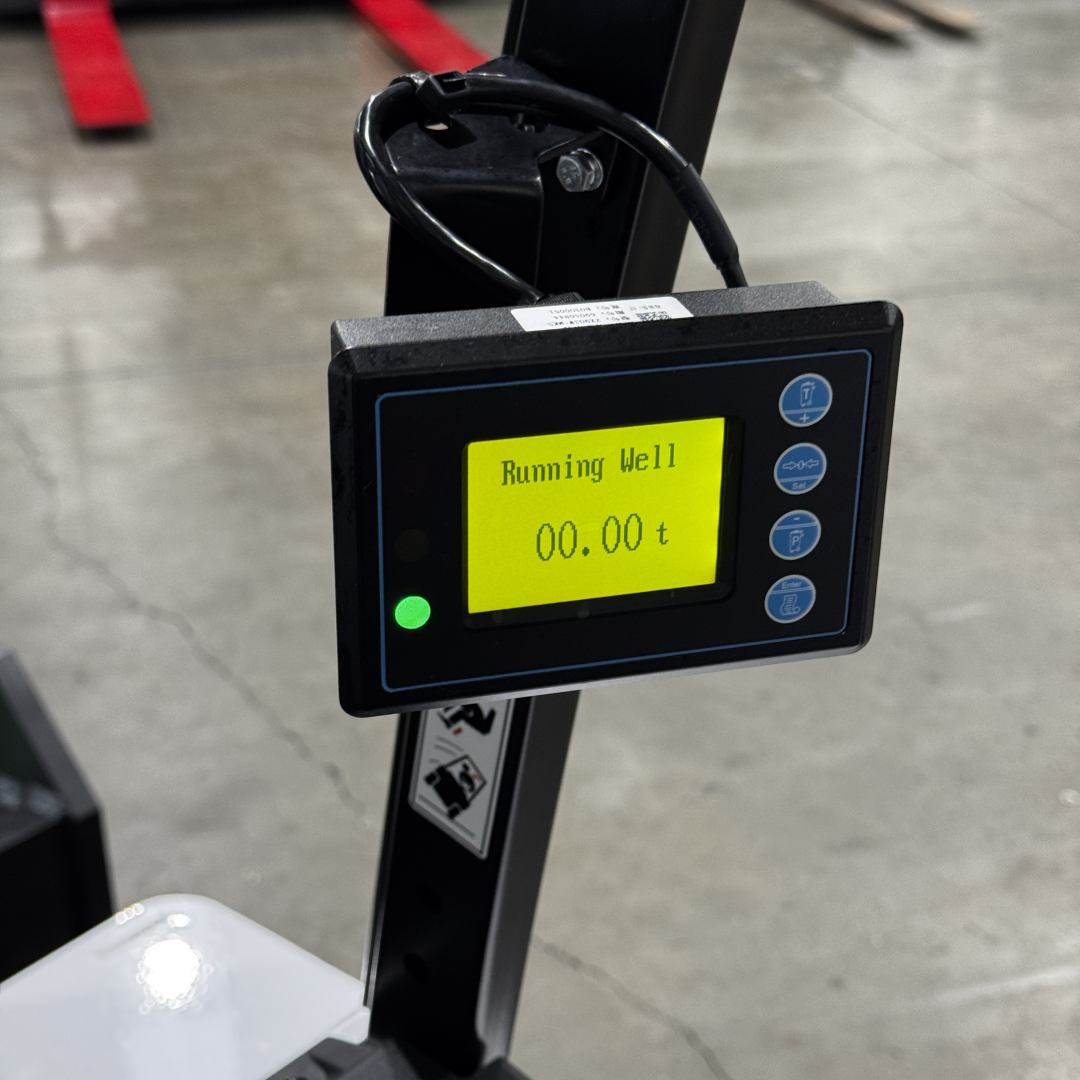

• Load Weight Display

• Rear Drive Handle with Horn Button

• Dual Mirrors Side View
